Infographic: Making a Nissan LEAF Battery

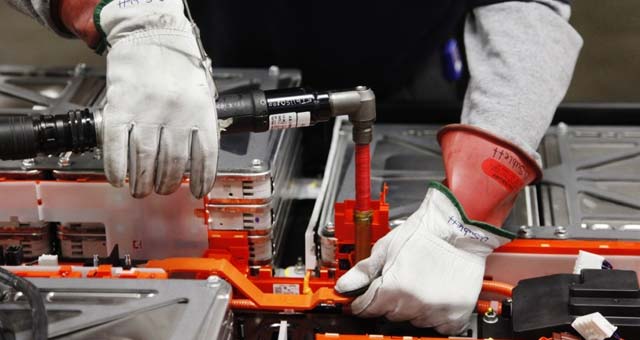

Nissan-Leaf-Battery
Nissan is making LEAF batteries at its newly opened lithium-ion battery plant in Smyrna, Tennessee.

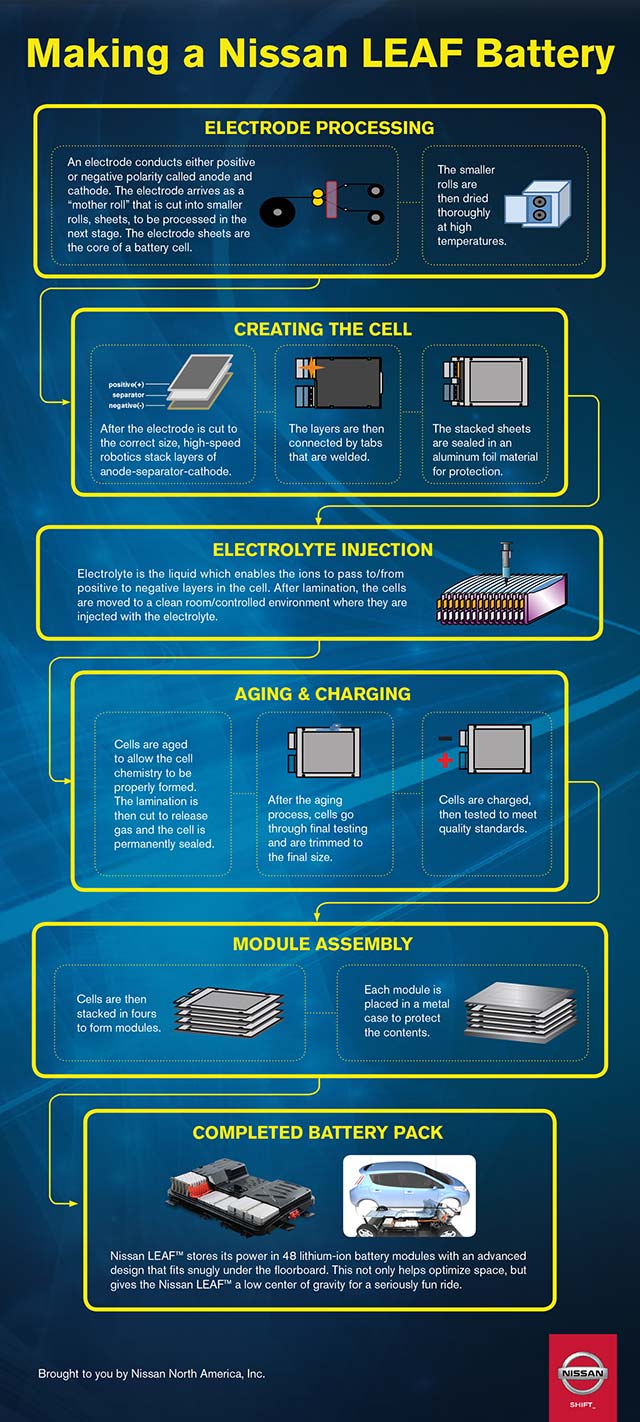

The infographic bellow shows the whole process of making the battery pack.

First, there’s the process of creating the cell. It’s composed of an anode, a cathode, the separator between them. After the cell itself is fabricated and tested, multiple cells are then assembled into modules. Each module is placed in a case to protect the contents.

A module is the main building block of a battery pack. Nissan LEAF stores its power in 48 lithium-ion battery modules. Once the pack is assembled, sealed, and tested, it can be inserted into a LEAF.

The battery pack has an advanced design that fits snugly under the floorboard to optimize the space. It also gives the Nissan LEAF a low center of gravity for a seriously fun drive.
Infographic-Making-a-Nissan-LEAF-Battery

Jun 6, 2013Blagojce Krivevski
Nissan Leaf Will Be Sold In BrazilJohnson Controls to Supply Lithium-ion Batteries for Large Plug-In Hybrid Trucks
You Might Also Like

Nissan Pioneers Zero-Emission Motorsport as LEAF Takes To The Race Tracks

Nissan LEAF Helps To Power Company’s North American Facilities With New Charging Technology
Blagojce Krivevski

Blagojce Krivevski is physicist and green technology lover. Keep in touch with Blagojce through his email, web site, Twitter, Linkedin, Facebook and Google+.

June 6, 2013 Electric Car NewsBattery Pack, Infographic, lithium-ion battery, nissan leaf, nissan leaf battery, Nissan LEAF Battery pack
